Catalog Contents

Complete Catalog In PDF Format

"The Best Quality Kit in The Business"

    is a RELI-A-PAK® Kit!   Here's why:

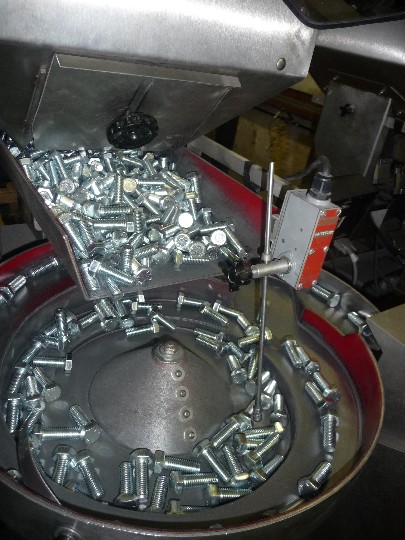

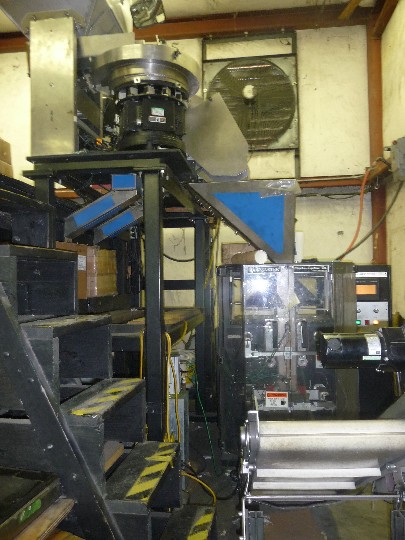

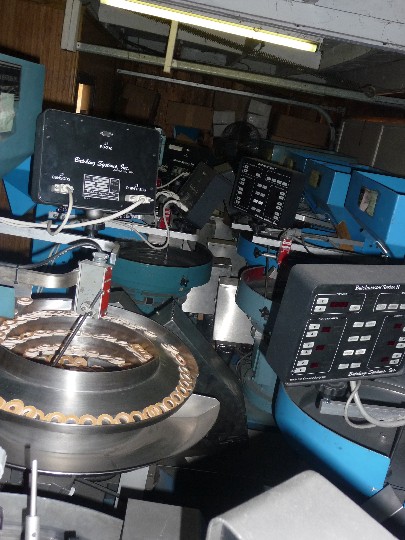

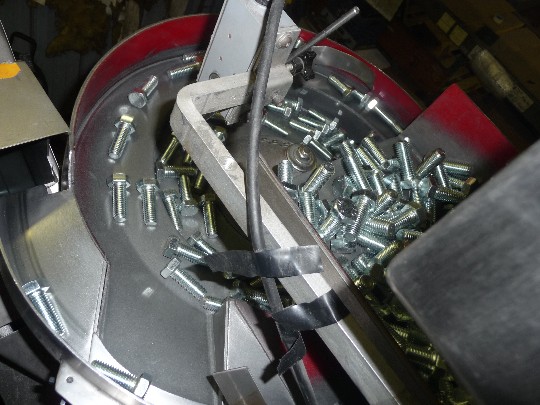

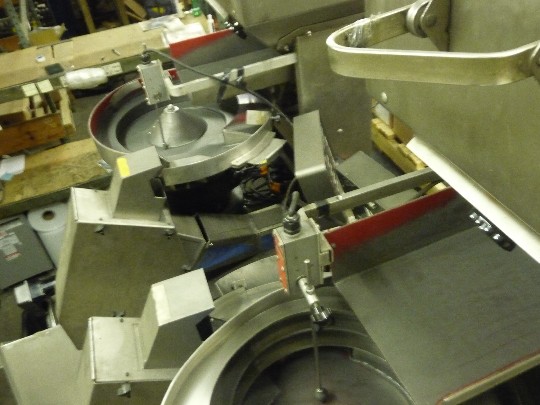

•  BOLTS & NUTS ARE COUNTED ON HIGH-SPEED ELECTRONIC COUNTING EQUIPMENT.

Click On Photo For a Larger Image

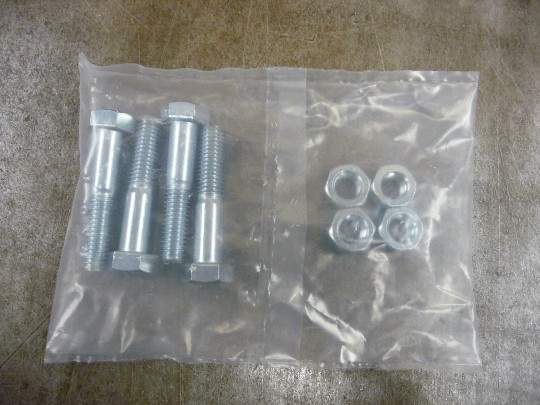

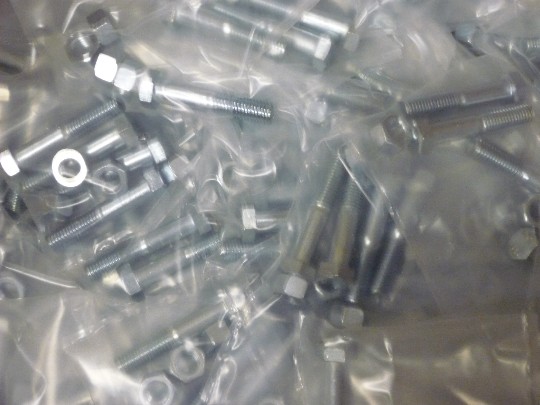

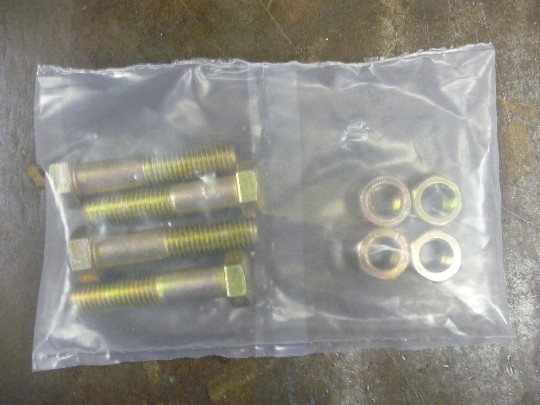

•  BOLTS & NUTS ARE SEALED INSIDE A HEAVY DUTY 5 MIL POLY BAG

Click On Photo For a Larger Image

*   PRESERVES THE COUNT ACCURACY

*   PROTECTS THE FASTENERS FROM CORROSION

*   PROTECTS THE GASKET FROM BEING DAMAGED BY THE FASTENERS

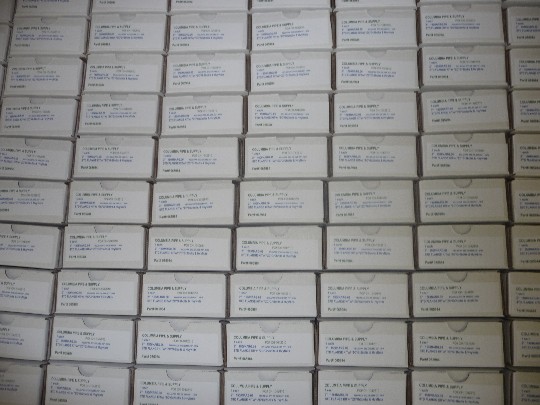

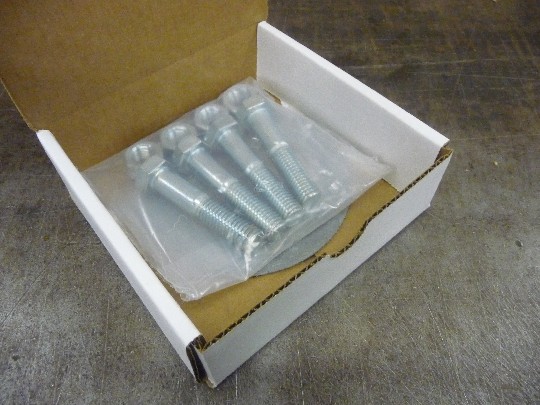

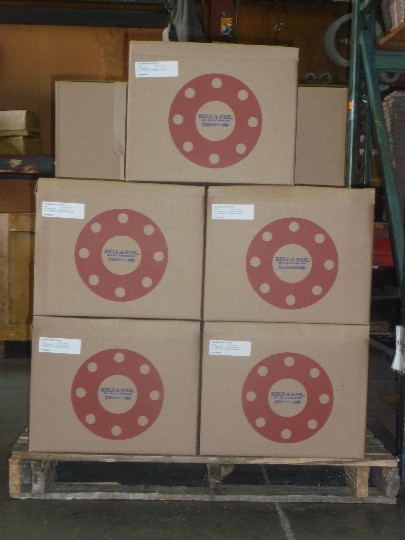

•  STURDY CORRUGATED BOXES

Click On Photo For a Larger Image

*   PREVENTS DAMAGE WHILE BEING STOCKED IN YOUR WAREHOUSE

*   LONGER STORAGE LIFE AT JOBSITES

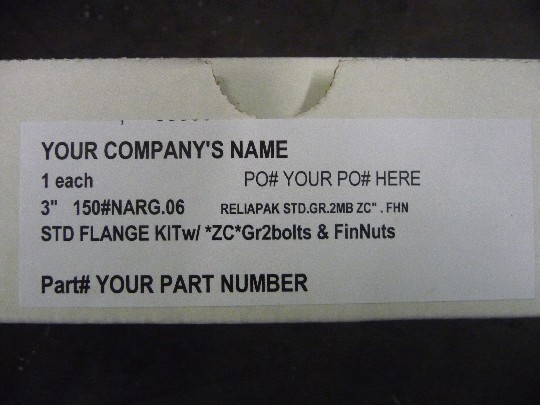

•  CUSTOMIZED LABELS WITH:

Click On Photo For a Larger Image

*   YOUR COMPANY NAME

*   YOUR PURCHASE ORDER NUMBER (for traceability)

*   COMPLETE PIPE SIZE AND DESCRIPTION

*   YOUR COMPANY PART NUMBER (for maximum efficiency in your warehouse)

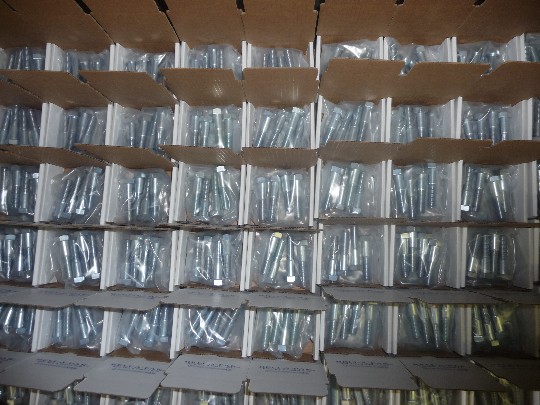

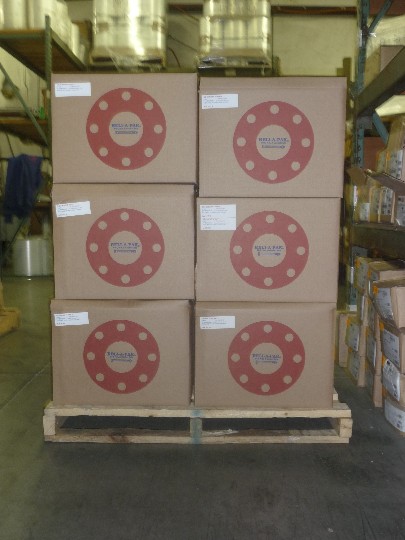

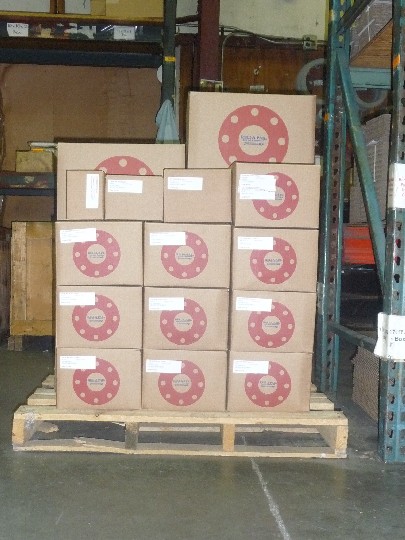

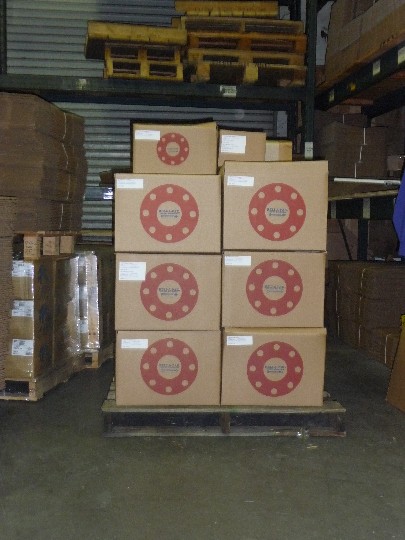

•  CONSISTENT CASE QUANTITIES, PALLETIZED AND WRAPPED



  Click On Photo For a Larger Image



•  PREPAID FREIGHT FOR ORDERS OVER  $1,500.00



  Click On Photo For a Larger Image



•  “SERVICE YOU CAN DEPEND ON!”

Click On Photo For a Larger Image

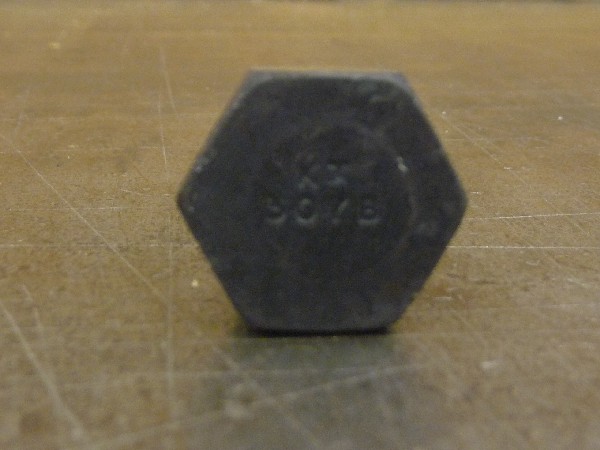

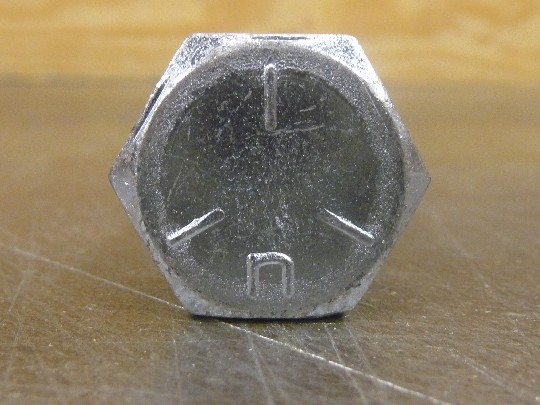

•  DOMESTIC FASTENERS ARE AVAILABLE ON REQUEST

Click On Photo For a Larger Image

•  MANY STANDARD KIT TYPES ARE AVAILABLE (see examples here)

*   STANDARD FLANGE BOLT KITS

*   STANDARD FLANGE STUD KITS

*   LUG BUTTERFLY BOLT KITS

*   WAFER BUTTERFLY STUD KITS

*   PLASTIC FLANGE BOLT KITS

*   FLANGE INSULATION KITS (with or without bolts & nuts)

            *   SPECIAL KITS AS PER YOUR SPECIFICATIONS

*    RELI-A-PAK® KITS COULD CONSIST OF SOME OF THE FOLLOWING PARTS:

*STUDS                  *STD. HEX  HEAD  BOLTS   *HEAVY  HEX  HEAD  BOLT

A193 GR.B7               A307 GR.A or J429 GR.2    A307 GR.B   A193 GR.B7

A193 GR.B8 or B8M     GRADE  5   GRADE  8     A193 GR.B16  A320 GR.L7

A320 GR.B8 or B8M     STD.18-8  STAINLESS       A193 GR.B8 or GR.B8M

A320 GR.L7                    STD. 316  STAINLESS       A320 GR.B8 or GR.B8M

*GASKET STYLES       *FINISHED  HEX  NUTS      *HEAVY  HEX  NUTS

   RING                                  A563     GR.5     GR.8               A563        A325

   FULL  FACE                   STD.18-8  STAINLESS      A194 GR.2H, GR.4,  & GR.7

   ENVELOPE                    STD. 316  STAINLESS             A194 GR.8 & GR.8M

                                                                                                STD.18-8  STAINLESS

                                                                                    STD. 316  STAINLESS

*GASKET  MATERIALS (Click on material to see spec sheet.)

NON-ASBESTOS                            THERMOSEAL (KLINGER)     C-4401    C-4430

RED  RUBBER

CLOTH INSERTED RUBBER                 GARLOCK    2400     2900/2950     9518

NEOPRENE                                              700     3000     3200     3300     3400     3700

EPDM                                                         IFG5500     IFG5507    HTC9800 / HTC9850

WHITE BUNA                                             3500  3504  3510  3530  3540  3545   3565

BUNA-N

VITON                                                    FLEXITALLIC      CG      CGI      LS      R      RIR

            PTFE  (TEFLON)

            Hypalon                            Intertex SQ-S                       Graphite

*NOTE:  This is only a partial listing of some items commonly used in  RELI-A-PAK®  kits. Other grades, brands, materials, and specials are available on request.
